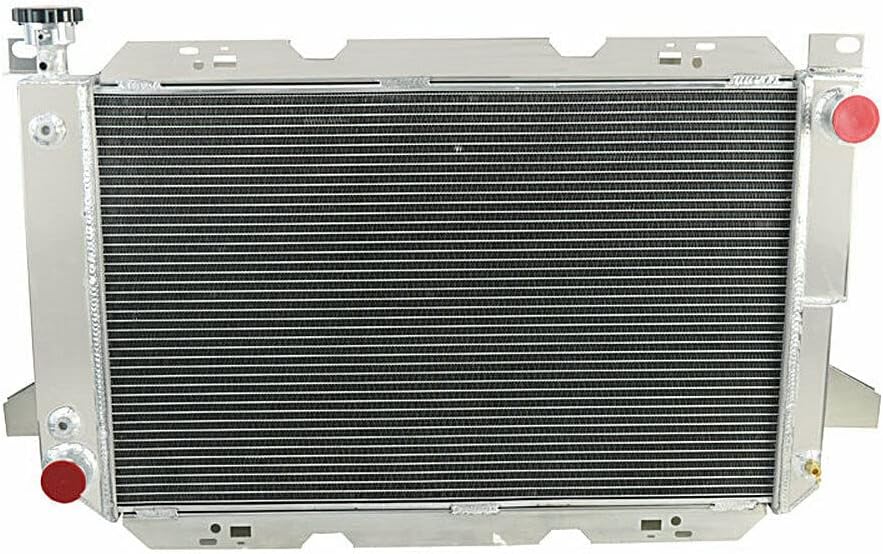

4 Row Aluminum Radiator + Shroud + Fan + Relay Fit 85-97 Ford F-150/F-250/F-350/Bronco/F Super Duty 5.0L 5.8L 7.3L V8 GAS/DIESEL

Fitment For 1985-1996 Ford Bronco 5.0L 5.8L V8 For 1990-1997 Ford F Super Duty 7.3L 7.5L V8 For 1985-1997 Ford F-150/F-250/F-350 5.0L 5.8L 7.5L V8 Radiator Details Row Count: 4 Row Upper Inlet: 1.77in located on driver side Lower Outlet: 1.77in located on passenger side Transmission Oilcooler:￠38×305×1/4-18NPT（T） Surface Finish: Includes CNC machined filler neck and cap OEM style brass petcock drain CNC machined filler neck and cap Fans Size Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Thermostat Kit RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Part Number Manufacturer Part Number: AM-31595185,DPI1451,CC1451,CU1451 Interchange Part Number: 1451,1605-291942,2183A,CU1451,FO3010134 Other Part Number:F2TH8005UA,F2TH8005VA,F2TH8005XA,F2TH8005YA

• Core Size: 2.44inT x 27.55inH x 17.63inW Overall Size: 37.7inH x 21.3inW
• Inlet/Outlet Diameter:1.77in/1.77in
• Package Include: Come with 1 x 4Row Complete Radiator. 1x Aluminum Shroud.2x12”Fans.1x Thermostat Relay Kit
• Easy To Install: Lightweight direct fit for easy installation，no modifications required.
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
